Trane BAYFTFREXM2, FLR06232 25" MERV 8 Expandable Furnace & AC Air Filter - 2-Pack
BAYFTFREXM2
Subscribe and save with the Home Filter Club! Find your filter, choose how often you want it delivered, and we’ll do the rest!
1" MERV 13 Furnace & AC Air Filter by Filters Fast® - 6-Pack
1" MERV 11 Furnace & AC Air Filter by Filters Fast® - 6-Pack

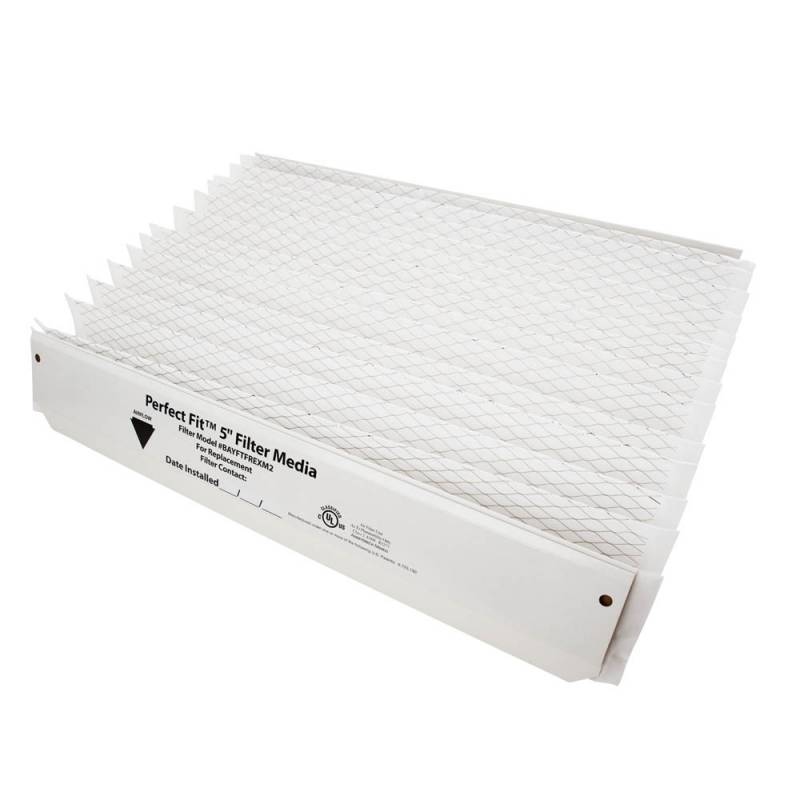

BioStrike CFF Ceiling Fan Air FilterThe Trane BAYFTFREXM2, FLR06232 25" MERV 8 Expandable Furnace & AC Air Filter - 2-Pack is a furnace air filter that can only be used with a Retrofit Frame Kit already installed. This Trane air filter measures approximately 25" in length x 5" in thickness. This Trane Perfect Fit filter is expandable and receives a MERV 8 rating for the improvement of your overall indoor air quality through the reduction of contaminants. This Trane furnace filter is an OEM replacement part and has a filter life of 6 months.
Specifications:
- Brand: Trane
- Part Number: BAYFTFREXM2
- Pack Size: 2
- MERV Rating: 8
- Filter Life: 6 months
- Approx. dimensions: 25" x 5"
- Must be used with the Retrofit Frame Kit
How do you install the Trane BAYFTFREXM2, FLR06232?
- Place the system thermostat switch in the OFF position before removing filter media.
- Place the filter frame on a flat surface such as a table or on the floor.
- Unsnap the latches on each of the 4 corners of the plastic filter frame and unfold the frame ends to remove and discard spent filter.
- Position the filter media on the plastic filter frame with the aluminum mesh side up.
- Insert the cardboard end of the filter with an offset into the slot on the outside edge of the filter frame. Working from left to right, fit the filter media into the pleat supports placing the first pleat next to the cardboard.
- Insert the right cardboard end into the slot on the right side of the filter frame.
- Close each end of the filter frame over the filter media making certain that the latch tabs fit inside the folded cardboard ends of the filter media.
- Re-install the assembled filter frame noting front and airflow direction. Restore system operation.
How often should you replace the Trane BAYFTFREXM2, FLR06232?
- Changing your Trane BAYFTFREXM2, FLR06232 is a very quick and easy process that should be done once every six months.
What contaminants does the Trane BAYFTFREXM2, FLR06232 reduce?
-
The Trane BAYFTFREXM2, FLR06232 is a MERV 8 air filter, which means that it reduces the following contaminants:
- Dust
- Pollen
Compatible Parts:
The Trane BAYFTFREXM2, FLR06232 25" MERV 8 Expandable Furnace & AC Air Filter - 2-Pack is the correct replacement for the following part numbers:
Compatible Models:
The Trane BAYFTFREXM2, FLR06232 25" MERV 8 Expandable Furnace & AC Air Filter - 2-Pack is correct replacement for the following model numbers:
